Asking price $17,995

This offering is for one of the many bikes from the private and personal collection of Barry S. Brown, the former owner of Chicago Harley-Davidson for over 33 years, currently “BADMC”. Please contact Barry Brown at 312-865-6868 with any questions.
This bike is just the way it came from  the Harley-Davidson Motor Company factory.
The bike has no miles, has never been ridden, and the engine has never been started. The bike is in new stock  showroom condition. Factory security system included.
This is a once in a lifetime opportunity to purchase a one of a kind Harley!

The bike has an Illinois title dated 05/02/2013

Sold as is, no warranty

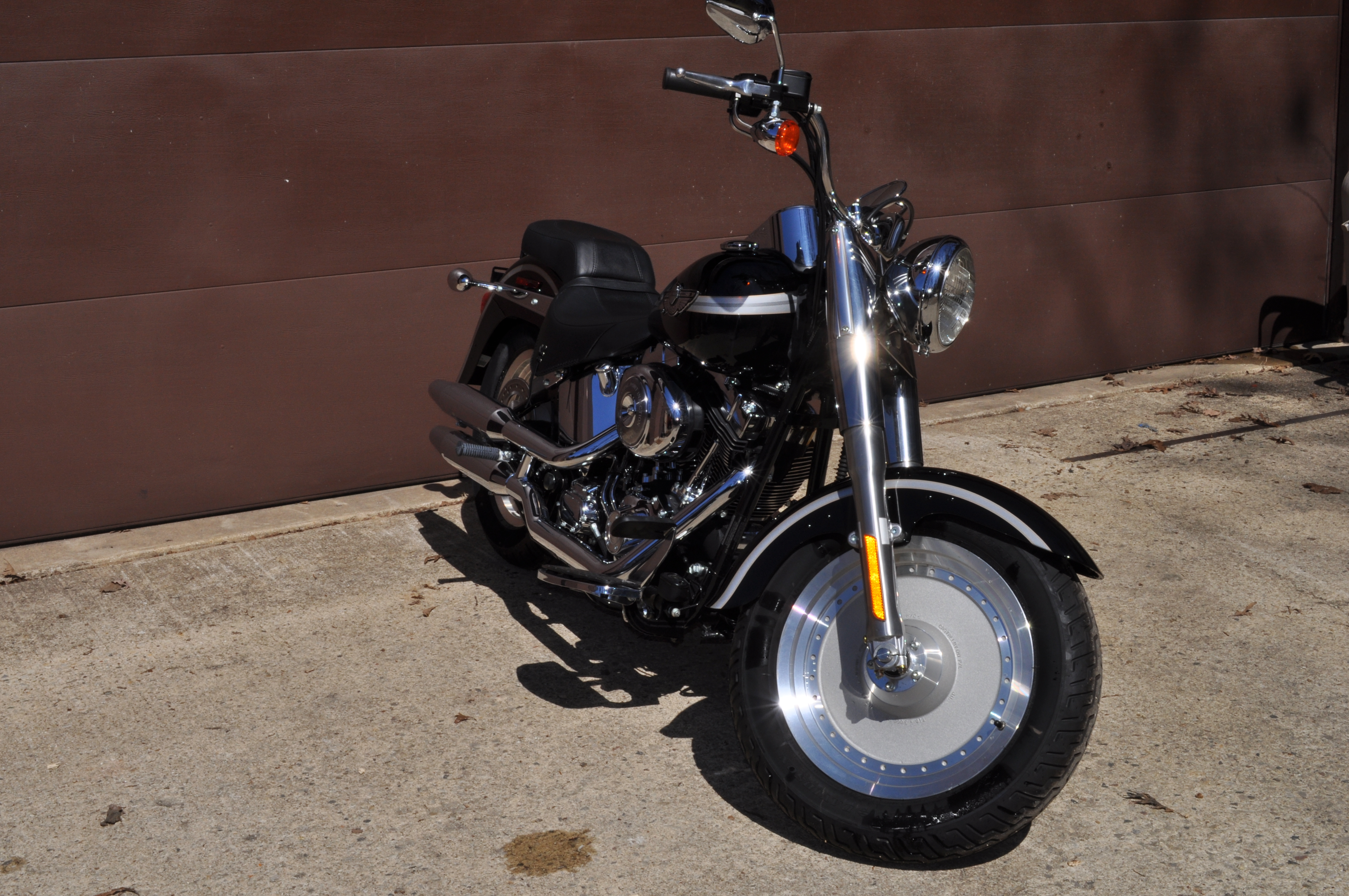

2003 Harley-Davidson     FLSTF/FLSTFI Fat Boy

There’s nothing skinny about this machine. With fat FL forks, a fat 16-inch     front tire and broad handlebars, people notice the Fat Boy ® in a crowd.     A 7-inch chrome headlamp, leather-laced seat and tank panel, and an unmistakeable     tank emblem all add to the distinctive look.

Key FLSTF Softail® Fat Boy® characteristics

-Rigid mount, 1450cc Twin Cam 88B™ balanced engine     -Black powdercoated engine with chrome covers     -Fat FL front forks     -Solid disc front and rear wheels     -Fat tires     -Floorboards     -FL rear fender     -Large chrome headlight with fork nacelle

 SPECIFICATIONS:

2003 Specifications FLSTF/I Softail® Fat Boy®

DIMENSIONS     Length 94.3 in. (2395.2 mm)     Seat Height (measure laden w/ 180 lb. rider) 25.5 in. (647.7 mm)     Seat Height (unladen) 27.5 in. (699.0 mm)     Ground Clearance 5.1 in. (129.5 mm)     Fork Rake 32.0 degrees     Trail 5.8 in. (147.3 mm)     Wheelbase 64.5 in. (1638.3 mm)     Tires: Dunlop Harley-Davidson Series     Front – D402F MT90B16 72H     Rear – D401 150/80B16 71H Fuel Capacity (includes 0.5 gal. reserve) 5.0 gal. (18.9 L)     Reserve Fuel Capacity (warning light at aprox. 1.0 gal. for ESPFI models)     0.5 gal. (1.9 L)     Oil Capacity 3.5 qts. (3.3 L)     Dry Weight 669.0 lbs. (304.0 kg) Vehicle Weight In Running Order (unladen) 705 lbs.(320.0 kg)     Gross Vehicle Weight Rating 1160.0 lbs. (527.0 kg)

ENGINE     Engine 45º Air-cooled Twin Cam 88B™ (balanced)     Valves Pushrod-operated overhead valves; w/ hydraulic     self-adjusting lifters; two valves per cylinder     Bore x Stroke 3.75 x 4.0 in. (95.25 x 101.6 mm)     Displacement 88 cu. in. (1450 cc)     Compression Ratio 8.9:1     Fuel System2 Carburetion or Electronic Sequential Port Fuel Injection (ESPFI)     (single runner, 45 mm throttle bore ESPFI)

DRIVETRAIN     Primary Drive Double row chain, oil bath,     mechanical tensioner, 36/25 ratio     Final Drive Gates carbon fiber reinforced     polychain belt, 32/70 ratio     Clutch 9-Plate, wet     Transmission Five-speed     Overall Ratio:     1st 10.110     2nd 6.958     3rd 4.953     4th 3.862     5th 3.150

CHASSIS     Frame Mild steel, rectangular section backbone     w/ twin down-tubes     Swing Arm Triangular “hard tail” style     Front Fork 41.3 mm, telescopic w/ “beer can” covers     Wheels 16 in. disc front,     16 in. disc rear     Brakes:     Caliper type Dual-piston front and rear     Rotor type (diameter x width): Patented, Uniform Expansion Rotors     Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)      Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)     Suspension travel:     Front Wheel 5.10 in. (129.54 mm)     Rear Wheel 4.30 in. (109.22 mm)

PERFORMANCE     Engine Torque (per SAEJ607)3:     North America 85 ft. lbs. @ 3000 rpm (115.0 NM @ 3000 rpm)     International 81 ft. lbs. @ 3100 rpm (110.0 NM @ 3100 rpm)     Lean Angle (per SAEJ1168):     Right 29.2 degrees     Left 27.0 degrees

ELECTRIC     Battery Sealed, maintenance-free, 12-volt, 19 amp-hour, 270 cca     (per Battery Council International rating)     Charging 37-amp permanent magnet alternator w/ solid-state regulator     (481 watts @ 3,000 rpm, 494 watts peak)     Starting 1.2 kw electric w/ Bendix-type engagement     Lights: (As per country regulation)     Headlamp Quartz halogen 55-watt low beam, 60-watt high beam     Tail/stop lights 8w/28w (int’l: 5w/21w)     Turn signal lights (self-canceling) 28w (int’l: 21w)     Indicator lamps High beam, neutral, oil, turn signals,     and security system (optional)4

STYLING/CONVENIENCE     Engine Trim Powdercoated black w/ chrome covers     Exhaust System Chrome over/under shotgun duals     Oil Tank Chrome “Horseshoe” w/ chrome external oil lines     Ignition Barrel key, tank console-mounted     Foot Supports Full-length operator floorboards w/ heel-toe shift lever     Rear Fender Full coverage     Rear Fender Supports Chrome     Fork Lock Common w/ ignition     Instruments Electronic speedometer w/ odometer and     resettable tripmeter w/ diagnostic readout capabilities     Flasher Hazard warning integrated into turn signal controls

COLOR:

Black

WARRANTY     Sold as is, no warranty     Service Interval First 1,000 miles (1,600 Km);     every 5,000 miles (8,000 Km) thereafter. — Inspections of certain systems and components are required at 2,500     mile (4,000 Km) intervals

TITLE:

The bike has an Illinois title dated 05/02/2013

SHIPPING: WE HAVE VARIOUS SHIPPING COMPANY’S THAT WE WORK WITH FOR SHIPPING THROUGHOUT THE US AT REASONABLE PRICES.

Buyer is responsible for any and all taxes, title and registration fees if applicable.
